Multi-Zone Dampers

Series 1000 MZ (Two-Deck) & Series 1001 (Single Deck) Multizone Dampers

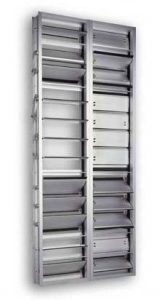

Series 1000
Decks are connected using 7/16″ (11.11 mm) extruded aluminum hex rods. The hex rods are stamped into the blade of one deck and U-bolted into the corresponding blade of the opposite deck

Connections between decks will not develop wear or play

There are no internal mechanisms that can loosen, fail, or be omitted

Transmission of torque, or stroke is direct and without losses

Blades are specifically designed to maintain 90º operation between decks

Internal zone dividers are designed to accept duct connections

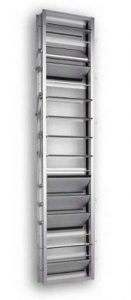

Series 1001

There are no internal mechanisms that can loosen, fail, or be omitted

Transmission of torque, or stroke is direct and without losses

Internal zone dividers are designed to accept duct connections
